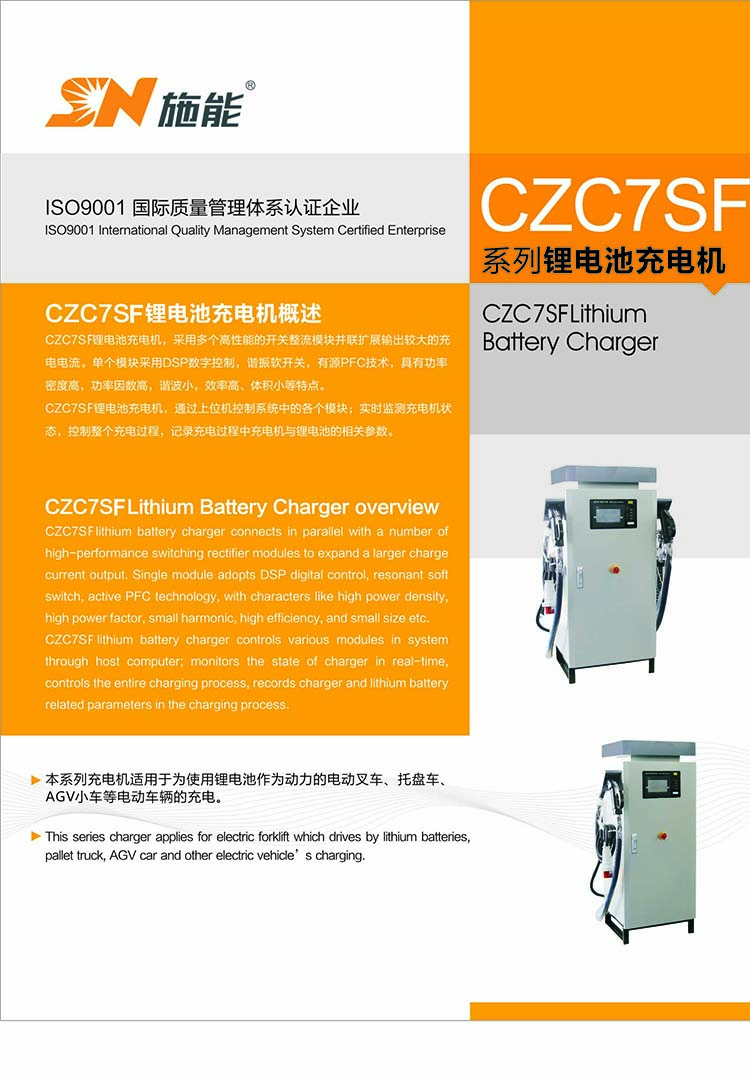

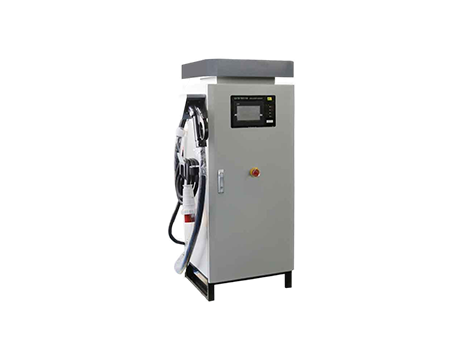

IP54 Protection Waterproof MoistureProof 3 Phase 100V 150A 200A 300A Intelligent Battery Charger CZC7SF-D100

Through the application of high-performance embedded charging control unit, CZC7SF series charger could control charging current. Main circuit with parameter-optimized design could provide continuously adjustable charging current, thus meeting various charging process requirements.
Charging controller which is composed by embedded system could control charging process, monitor and record charging data in real time.
With the application of charging controller and main circuit, this charger could charge various batteries through appropriate charging methods, thus achieving best charging effect.
Charging controller which is equipped with multiple charging curves could meet various different charging process requirements. In the meantime, Users could set and save charging curve which has been changed, satisfying customized charging requirements.
This charging controller is equipped with simple & practical man-machine interface. Users could set charging parameters in LCD touch screen. This screen would display charging parameters and charging status, making it easy for users to know charging process in real time.
This charging controller would monitor various parameters in the process of charging in real time. In this way, charger has perfect protection function which makes charging process execute smoothly. Meanwhile, charging controller also provides communication port,output protection port and  chain control with other devices which would be convenient for the control of charger upper computer.

Features:

Man-machine interface. Serial port 4.3 LCD Color touch screen is used to set and display charging parameters.
2,Record of charging data. Incident record could be shown on LCD screen.
EEPROM would record charging data. It could also be used for data analysis.
SD card could record charging process curve which could be read by PC (optional function).
3,Reserving charging. Set up charging time in advance.
In the night use electricity troughs to charge, it can reduce costs.
4,Power failure protection. The parameters set by users would be recorded persistently. The data would not be lost if and when the power is terminated.
5,Phase sequence of input power. Phase sequence would not be required for power grid. The three phase input, A & B & C could be randomly connected.
6,Special charging function. Function of startup force (0V). Function of battery offline detection. (Once connecting line falls off in the charging process, the charger would shut down automatically.)
7,Protection function. Fault protection and fault warning function.(faults: pen circuit, anti-polarity,over current,over voltage,over heat,power phase shortage, etc.)
8,Interface of output control. Touch output of relevant warning. (optional function)
9,Emergency stop function: When the uncontrollable exception occurs, it can be forced to turn off by the emergency stop button.


The CZC7SF series smart charger uses a high-performance embedded charging control unit to control the charging current. Through the parameter-optimized design of the main circuit module, it provides continuously adjustable charging current for various batteries and lithium batteries to meet various charging process requirements.

The charging operator composed of an embedded system controls the charging process in real time and detects and records the charging process data.

The main circuit and module are designed with optimized parameters. Under the control of the charging operator, the charging current and charging voltage are continuously controllable, allowing users to use appropriate charging curves to charge various batteries and lithium batteries for different purposes to ensure charging effects.

The charging operator has a built-in default charging curve. At the same time, users can also set and store customized charging curves as needed to meet customized charging process requirements.

The charger operator has a simple and practical human-machine interface. Charging parameters are set on the LCD touch screen, which displays various parameters and status of the charging process to facilitate users to understand the charging process in real time.

The charging operator monitors various parameters during the charging process in real time, so that the charger has a complete protection function and protects the smooth progress of the charging process in real time. At the same time, it also provides communication interfaces and protection output interfaces to provide interlock control with other equipment.

1: Human-machine interface: 4.3" serial LCD color touch screen is used to display the charging process parameters; set various parameters in the charging stage.

 2: Charging data record: Check the charging process event record on the LCD screen.

EEPROM records charging data and can perform recorded data analysis.

The SD card records the charging process curve and reads it through a PC. (optional)

 3: Scheduled time charging function: You can set the scheduled charging start time, use valley power to charge, and save electricity bills.

 4: Power loss protection for set parameters: The system can remember the parameters set by the user for a long time and will not be lost in a power outage.

 5: Input power phase sequence: There is no phase sequence requirement for the power grid, and the three-phase input A, B, and C can be connected arbitrarily.

 6: Special charging function: forced start (0V) function, if the connection cable falls off during charging, the charger will automatically shut down (battery falloff detection).

 7: Protection function: fault protection and warning functions such as open circuit, reverse connection, overcurrent, overvoltage, overheating, and lack of power supply.

 8: Output control interface: related warning contact output. (optional)

 9: Emergency stop function: When an uncontrollable abnormality occurs, the emergency stop button can be used to force the shutdown
